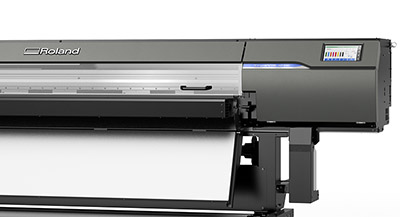

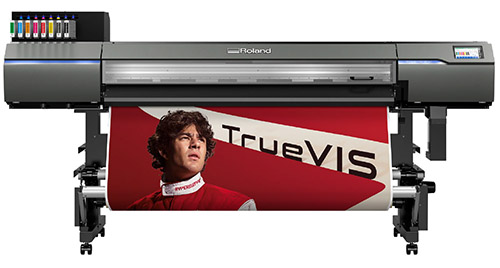

TrueVIS XP-640 at a glance:

Roland's flagship print only device
New TrueVIS TH ink in 500ml Cartridges
Dual CMYK or CMYKOrGrRdLk configurations
Extremely wide color gamut when utilizing Red, Green and Orange cartridges
Two mirrored and staggered piezo heads to maximize performance

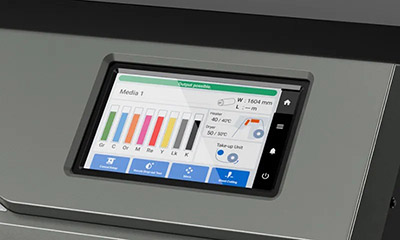

Touchscreen Display

The first thing you will notice about the new TrueVIS XP-640 besides it's attractive styling is the 7 inch touchscreen display which offers a better user experience as well as added functionality such as animations and tutorials for many of the maintenance and operational functions.

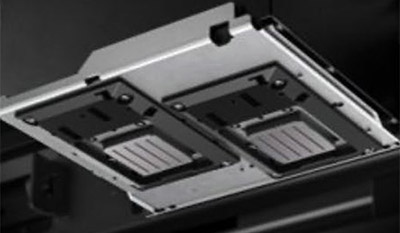

Print Heads

Four Flex-Fire printheads with precision droplet technology maximize print performance. Even in high speed modes the TrueVIS delivers rich smooth color. TR2 inks dry fast and glossy with the highest color vibrancy.

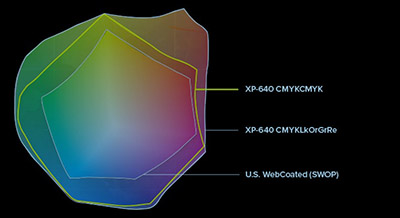

Expanded Color Gamut

Redesigned inner pinch rollers raise during cutting jobs while outer rollers remain engaged to ensure accurate print and cut operation.

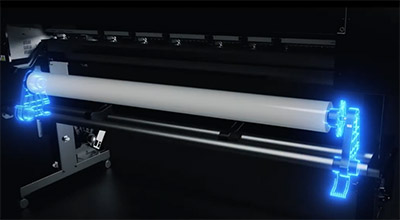

Media Holder and Take-Up Reel

A one-touch lever locks the media in-place in one easy motion— other easy loading features include an integrated fan to keep the media steady during set-up.

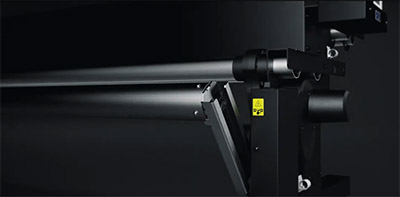

Adjustable Take-Up Reel

For a more efficient print operation, smart media clamps with integrated grooves don't interfere with sheet-cutting or need to be removed at any time.

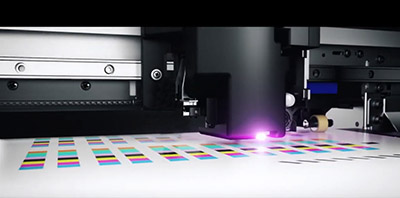

Automated Printhead Alignment

A new optical eye automates the printhead alignment process to keep your prints razor sharp.

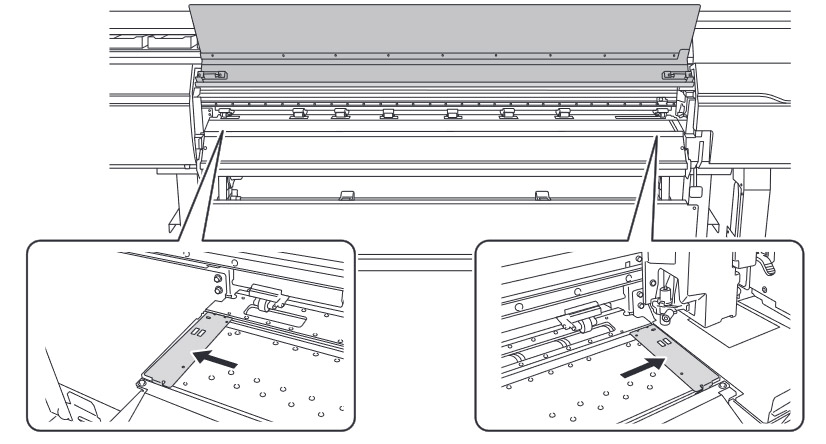

Smart Media Clamps

For a more efficient print operation, smart media clamps with integrated grooves don't interfere with sheet-cutting or need to be removed at any time.

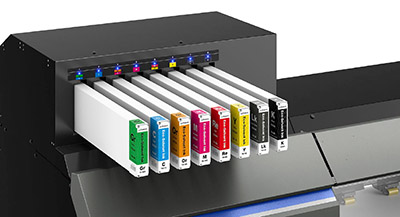

New TH Ink

TrueVIS TH Ink is formulated to produce the rich, vibrant, natural color that the TrueVIS Series is known for. The new ink system helps ensure production level throughput and is available in a dual CMYK configuration, or the 8-color
expanded gamut set that increases both creative opportunities and color-matching capabilities. In addition to production-level throughput, TH inks are fast drying, enabling same-day lamination for high volume users. This allows for a more efficient workflow and quicker job turnaround. High-capacity 500 ml pouches are cost effective and perfect for high-volume applications such as vehicle graphics, posters, backlit displays, and commercial banners.

		XP-640
Printing Method		Piezo ink-jet method
Media	Width	10.2 to 64 in. (259 to 1,625 mm)
	Thickness	Max. 39.3 mil (1.0 mm) with liner
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 99 lb. (45 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing Width (*1)		Max. 63.5 in. (1,615 mm)
Ink	Type	Eco-Solvent Ink (TH) 500 ml cartridge
Ink	Colors	Eight colors (Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red) Four colors (Cyan, Magenta, Yellow, and Black)
Printing Resolution (dots per inch)		Max. 1,800 dpi
Media Heating System (*2)		Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving Function		Automatic sleep feature
Rated Input		100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
Power Consumption	During Operation	Approx. 1,180 W
Power Consumption	Sleep Mode	Approx. 50 W
Acoustic Noise Level	During Operation	66 dB (A) or less
Acoustic Noise Level	During Standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm)
Weight		417 lb. (189 kg)
Environment	During Operation (*3)	Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80% RH (no condensation)
Environment	Not Operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80% RH (no condensation)
Included Items		Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.
