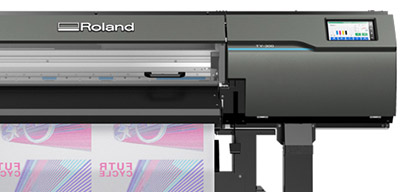

TY-300 at a glance:

High Quality up to 1200 x 1200 dpi
Fast - up to 230 sq ft per hour
CMYK plus White
Integrated Contour Cutter. Can also perform as a vinyl cutter.

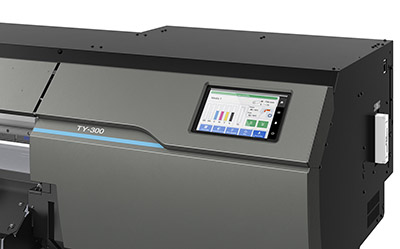

Touchscreen Display

The new TrueVIS TY-30 has a 7 inch touchscreen display which offers a better user experience as well as added functionality such as animations and tutorials for many of the maintenance and operational functions.

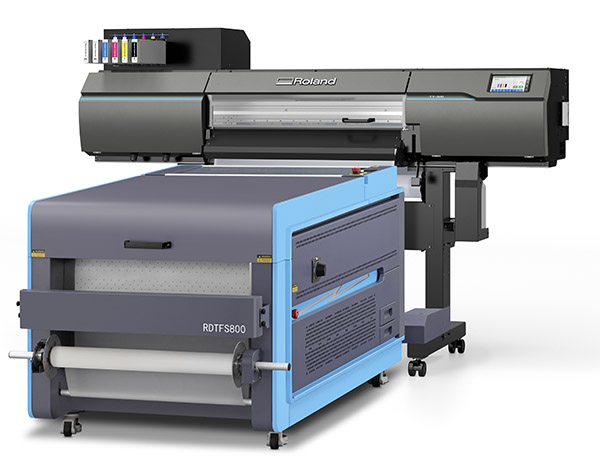

Optional Shaker/Oven

Designed to meet the specific requirements for the TY-300, the RDTFS800 pairs up perfectly to achieve high-quality,
production-level output. Roland DG provides specific settings to pair the devices in any print mode with perfect finishing results. Dual catch trays allow for long run, unattended printing from roll-to-roll for optimized production efficiency. Included with an alignment fixture to ensure perfect prints even on full roll unattended printing and simple set up. Built-In fume extraction system to save space while providing user safety requirements.

$6795 when purchased separately.

VersaWorks RIP Software

Whether you need an uncomplicated RIP solution for fast and easy printing, or you’re looking to upgrade to the latest, feature-packed RIP software, VersaWorks 6 expands your printer capabilities and maximizes the power of your Roland DG devices. Roland DG VersaWorks 6 incorporates a multitude of advanced features that make it the most powerful, user friendly RIP software available today. Perhaps best of all, VersaWorks 6 is included at no extra cost.

Adjustable Take-Up Reel

For a more efficient print operation, smart media clamps with integrated grooves don't interfere with sheet-cutting or need to be removed at any time.

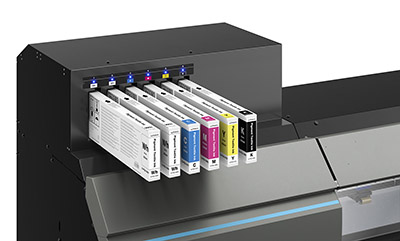

SPG2 Ink

The SPG2 DTF inks by Roland DG offer several advantages for apparel decoration and customization, making them a popular choice for high-quality direct-to-film printing. These inks produce rich, vibrant colors, enhancing the visual appeal of printed designs. SPG2 is suitable for high-resolution graphics and can be used on various fabrics, including cotton, polyester, blends, and even dark-colored materials. Flexible Applications: Suitable for fashion, uniforms, promotional apparel, and more. Prints that are resistant to cracking, fading, and peeling, even after repeated washing.

		TY-300
Printing Method		Piezo ink-jet method
Media	Width	7.2 to 30 in (182 to 762 mm)
	Thickness	Maximum 39.3 mil (1.0 mm) with liner for printing, Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner for cutting
	Roll outer diameter	Maximum 9.84 in (250 mm)
	Roll weight	66.1 lb (30 kg)
	Core diameter	3 in (76.2 mm) or 2 in (50.8 mm)
Printing/cutting width (*1)		Maximum 28.9 in (736 mm)
Ink	Type	S-PG2 INK 500 ml cartridge
Ink	Colors	Five colors (cyan, magenta, yellow, black, and white) (2 cartridges)
Printing resolution		Maximum 1,200 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf
Blade type		CAMM-1 series blade
Blade offset		0.0 to 59 mil (0.000 to 1.500 mm)
Software resolution (cutting)		0.98 mil/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113°F (30 to 45°C), Dryer set temperature: 86 to 122°F (30 to 50°C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120 / 220-240 Vac 50/60 Hz 6.4/3.0 A
Power consumption	During operation	Approx. 840W
Power consumption	Sleep mode	Approx. 70W
Acoustic noise level	During operation	63 dB (A) or less
Acoustic noise level	During standby	58 dB (A) or less
Dimensions (Width x Depth x Height)		80 in x 29.5 in x 55.8 in (2,032 mm x 748 mm x 1,415 mm)
Weight		298 lb (135 kg)
Environment	During operation (*4)	68 to 82.4°F (20 to 28°C), Humidity: 40 to 60% RH (no condensation)
Environment	Not operating	41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation)
Included Items		Dedicated stand, Power cord, Media holders, Separating knife, Replacement blade, Cleaning liquid, Drain bottle, User's Manual, Software（VersaWorks, Roland DG Connect), etc.
